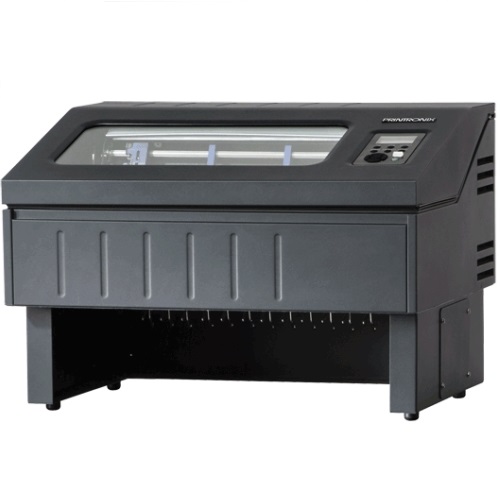

Printronix P8005ZT Zero Tear Pedestal 500LPM Line Printer

Printronix P8005 Zero Tear Pedestal Line Printer Specifications

Standard Features & Options:

• Integrated Print Management - Standard
• Ribbon Life Monitor - Standard
• Black Back Forms Paper Out Sensor - Option
• Graphics PGL/VGL - Option
• Emulations - Standard

1. 1. LP+ for all P8000
   • HD for all OpenPrint

• Emulations - Option

1. 1. IPDS - requires ASCII and PrintNet
   2. Telnet - requires ASCII and PrintNet
   3. ANSI - requires ASCII
   4. PCL2 - requires ASCII
   5. LG - requires ASCII, Not available with 2000 LPM Printers

• Interfaces - Standard

1. 1. RS 232 Serial, USB

• Interfaces - Option

1. 1. PrintNet 10/100 Base T  (includes Standard)
   2. Parallel Port (includes Standard)
   3. PrintNet 10/100 Base T and Parallel Port (includes Standard)

• Media Handling - Standard

1. 1. Cabinet - Fixed Fence
   2. Pedestal - Lower Tray
   3. Zero Tear - No Tray

• Media Handling - Option

1. 1. Cabinet - Front Paper Access System (includes Standard)
   2. Cabinet - Rear Pull Out Paper Tray (includes Standard)
   3. Pedestal - High Rear Tray (includes Standard)

Dimensions:

• Height - 42.04"
• Width - 25.8"
• Depth - 19.1", With Basket 31.9"
• Printer Weight - 140 Lbs.
• Shipping Weight - 185 Lbs.

Print Speed: (Lines Per Minute)

• High Speed (draft) - 500 LPM UPPER CASE, 428 LPM lower case
• Data Processing - 375 LPM UPPER CASE, 300 LPM lower case
• Near Letter Quality - 200 LPM UPPER CASE, 154 LPM lower case

Graphics Speed: (Inches (mm) Per Minute)

• 60 x 48 dpi - 63  IPM, 1600 mmPM
• 60 x 72 dpi - 42 IPM, 1067 mmPM
• 90 x 96 dpi - 21 IPM, 533 mmPM

Paper Feed Speed: (Inches (mm)  Per Second)

• Speed - 12 IPS, 305 mmPS
