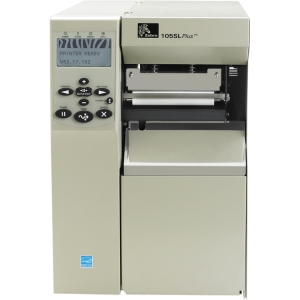

105SLPLUS™ 203 DPI
Printing Specifications
• 203 dpi resolution (8 dots / mm)
• Dot size (W × L): 0.0049" × 0.0049"
(0.125 mm × 0.125 mm)
• First dot location measured from inside media edge: 0.14" ±0.05" (3.5 mm ±1.25 mm)
• Maximum print width: 4.09" (104 mm)
• Maximum non-continuous media print length (with 16 MB memory): 39" (991 mm)
• Maximum continuous media print length
(with 16 MB memory): 150" (3810 mm)
• Media registration tolerance*
?? Vertical:
• ±0.030" (±0.75 mm) at print speeds at or below 4 ips on non-continuous media
• ±0.060" (±1.5 mm) at print speeds higher than 4 ips
?? Horizontal: ±0.060" (±1.5 mm)
• Programmable print speeds (inches per second): 2.4, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
• Barcode modulus “X” dimension:
?? Picket fence (non-rotated) orientation:
4.9 mil to 49 mil
?? Ladder (rotated) orientation: 4.9 mil to 49 mil
?? Ladder (rotated) orientation: 4.9 mil to 49 mil
